Product Details
＋

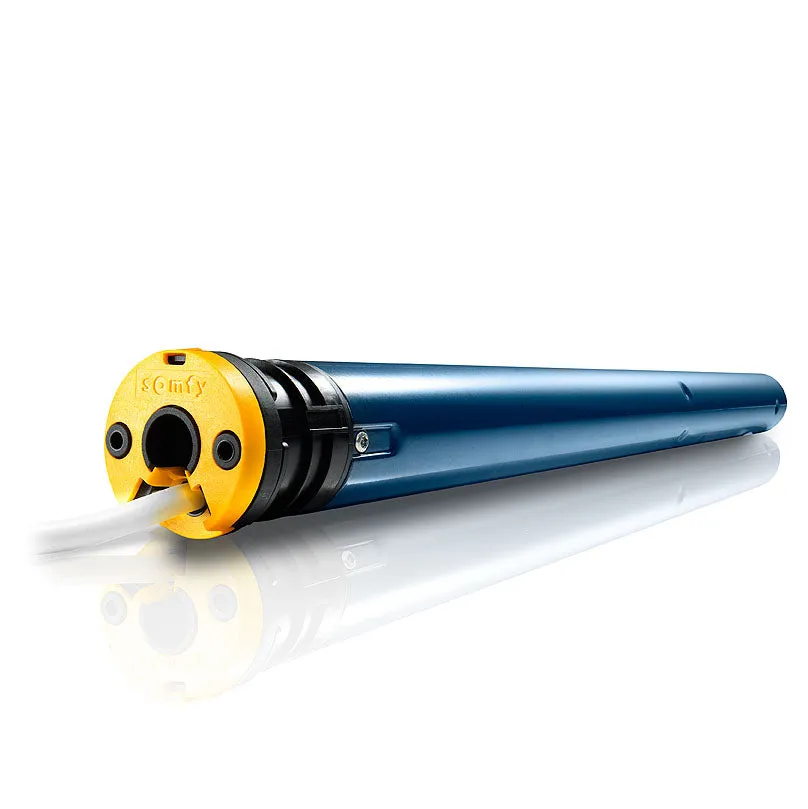

The Sonesse® 40 range is putting window coverings in motion with quiet precision. Ideal for variety of interior window covering applications.
Support
Technical Information
TECHNOLOGY |
|
|---|---|
| Radio Frequency | RTS 433.42 MHz |
| Range in open field | 200 m |
| Capacity of memory | 12 different codes plus 3 wireless sensors |
| Coding | Rolling code 16 million of possibilities |
| Range in house | 20 m |
ELECTRICAL |
|
|---|---|
| Antenna | Integrated |
| Consumption in standby mode | 0.5 W |
| Consumption during operation | 95 W |
| Minimum voltage | 207 V |
| Maximum Voltage | 253 V |
| Nominal Voltage / Frequency | AC - RGE 1 - 230V/50HZ |
| Rated current | 0.44 A |
MECHANICAL |
|
|---|---|
| Traction force | 7 Kg |
| Repeatabilty | /- 4 ° |
| Nominal Torque | 3 Nm |
| Type of limit switch unit | Electronic RTS |

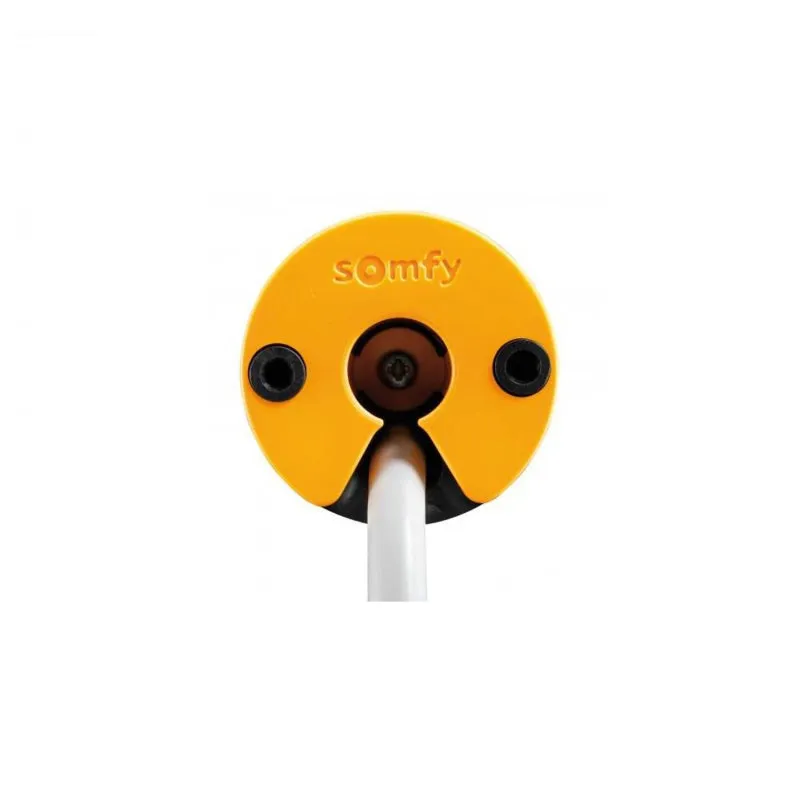

| Type of head | ROUND |
| Nominal Speed | 30 rpm |
| Capacity of the limit switch unit | 250 turns |
STANDARD |
|
|---|---|
| Approval | CE |
| Insulation class | Class II |
| Protection Index | IP 44 |
CABLE |
|
|---|---|
| Number of wires of the cable | 2 |
| Wire section | 0.75 mm² |
| Plug in cable | STRIPPED |
| Cable type | VVF |
| Color | WHITE |
| Wire Length | 3 m |
DIMENSION |
|
|---|---|
| Overall length (L3) | 520 mm |
| Riveting position distance (L2) | 480 mm |
| Weight | 1.35 Kg |
| Diameter | 40 mm |
| Basic crown for tube diameter | 37 mm |
| Length (L1) | 520 mm |
