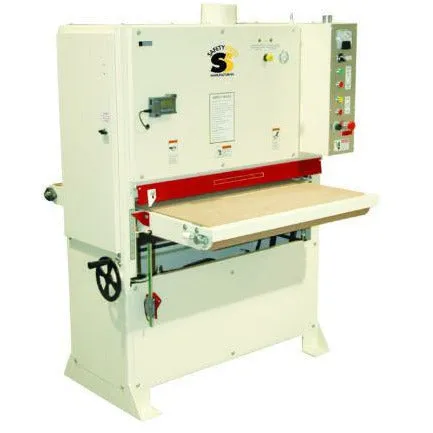

Safety Speed 3760 Wide Belt Sander

Enjoy the benefits of a serious wide belt sander with features found on much larger sanders all packed into a lower cost machine.

Wide Belt Sanders solve the most tedious challenge that woodworkers face! Our American Made 3760 Wide Belt Sander will improve your finishing time, decrease your hand sanding and increase your productivity. Available with either a 10 horsepower, single phase or a 15 horsepower, three phase motor these American made wide belt sanders are workhorses that will likely outlive you. Don’t take our word for it, learn how Roltgen Woodworks did it!

Product demonstration

An Introduction to our American Made Wide Belt Sanders

Standard Equipment

Photo electric belt tracking.
2 1/2″ removable platen.
2 height adjustment indicators.
5 emergency stops.
2 rubber-covered pinch rollers 1 1/2″ OD.
Rubber-covered contact roller 4 1/4″ OD with 13/8″ drive bearing.
2 machined idler rollers 2 3/16″ OD with 3/4″ bearings.
Conveyor table set on four 3/4″ acme-threaded jackscrews
Pneumatic belt tensioning.
3 year warranty.
6″ internal dust chute.
3/4 Hp conveyor motor

Specifications

Weight	1362 lbs
Dimensions	60 × 60 × 71 in
Max. Working Length	Unlimited
Min. Working Length	12'/305mm
Main Motor Options	10 Hp, Single Phase (1~), 220 Volt, 15 Hp, 3 Phase (3~) 208 Volt / 230 Volt
Max. Working Width	36'/915mm
Max. Working Thickness	7 1/4'/184mm
Min. Working Thickness	1/8'/3mm
Vacuum Requirement	1000 CFM
Conveyor Speed	0-18 FPM
Durometer of Contact Roller	60
Sanding Belt Size	37' x 60'
