Compact and Powerful Charging: Introducing the ROCKSOLAR 29.2V/10A LiFePO4 Battery Charger, offering a solid 292W output power. Perfect for efficiently charging 24V LiFePO4 batteries.
Flexible Input Voltage: Designed to support a wide input voltage range from 100~240Vac, making it versatile for use in different regions and power sources.
Precision Output Control: Delivers a steady output voltage of 29.2Vdc with an output current of 10A, ensuring precise and consistent charging, along with a stable voltage accuracy of ±0.2V.
Durable in Varied Environments: Operates reliably in a broad operating temperature range of -10 to 45℃ and can be stored in temperatures ranging from -40 to 70℃. It’s also designed to work efficiently in relative humidity levels of 5% to 95%, non-condensing.
Natural Air Cooling: Utilizes a natural air cooling method, enhancing the charger's durability and maintaining optimal performance without the need for additional cooling equipment.
Enhanced Electrical Characteristics: Features include a broad input voltage range of 90~264 Vac, a maximum input current of 5A, and superior power factor correction of ≥0.95. Its efficiency of ≥90% at full load ensures an energy-efficient operation.
Advanced Protection Features: Equipped with comprehensive safety mechanisms like reverse polarity protection, output short circuit protection, output overvoltage, and overcurrent protection, safeguarding both the charger and connected batteries.
Intuitive LED Indicators: The charger displays clear charging status with a green LED for power on, red LED during charging, and green LED when the battery is fully charged.

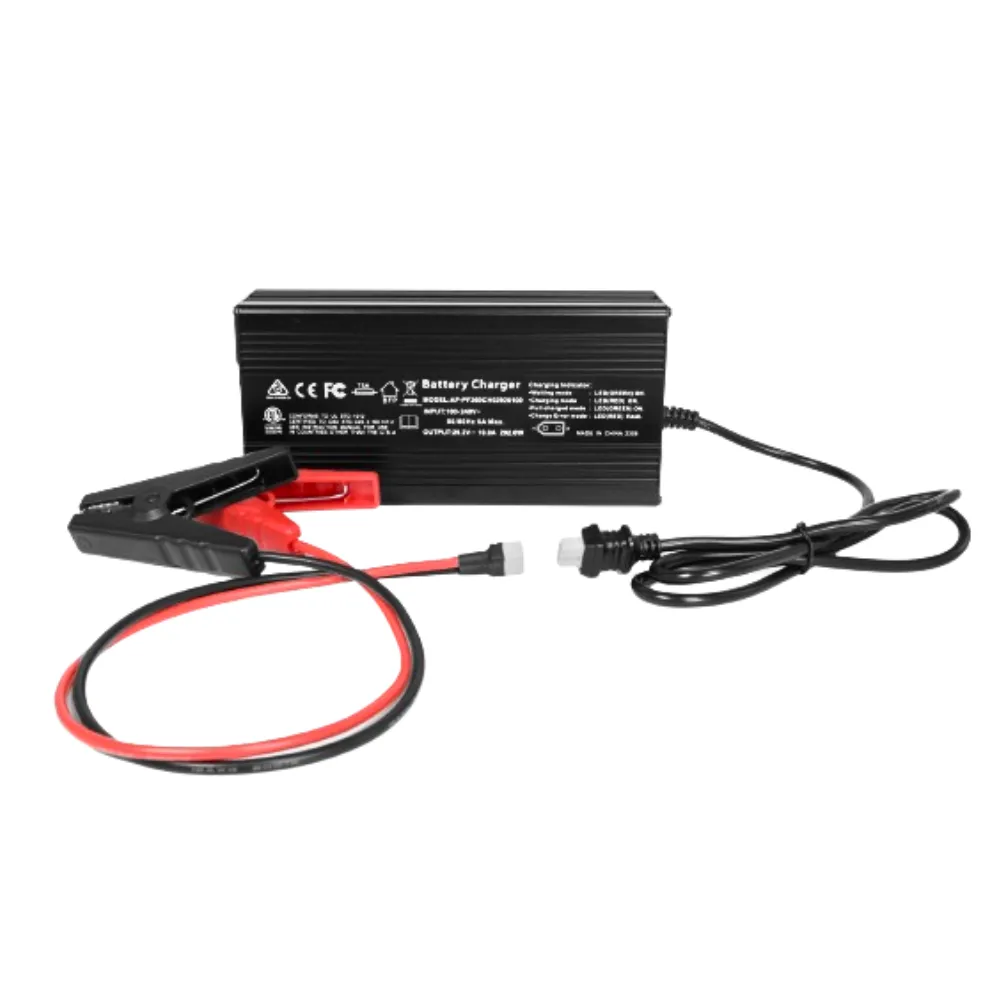

Reliable and User-Friendly: The ROCKSOLAR 29.2V/10A LiFePO4 Battery Charger is an ideal choice for users seeking a reliable, easy-to-use, and efficient charging solution for a variety of applications.

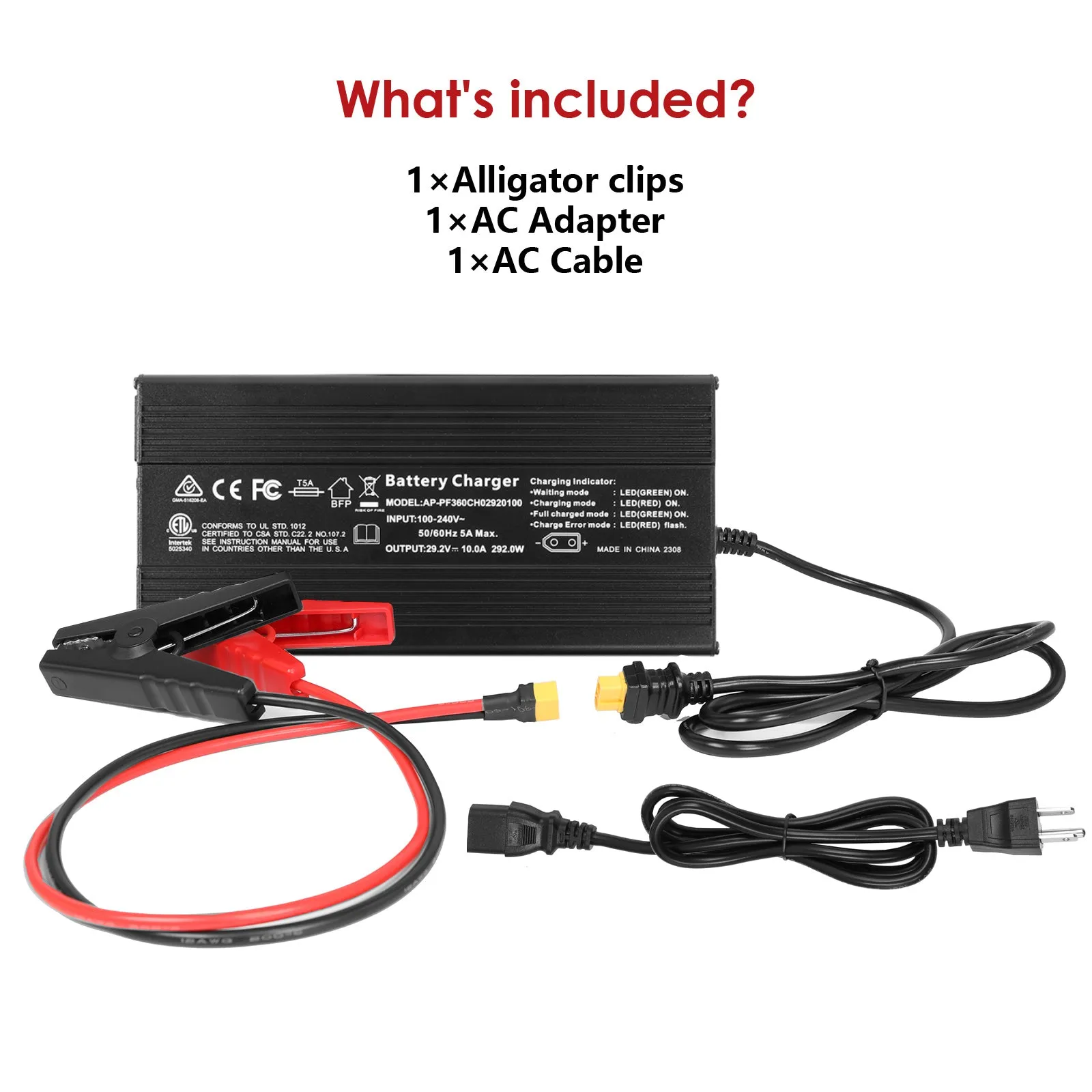

- 1x Alligator Clips
- 1x AC Adapter
- 1x AC Cable

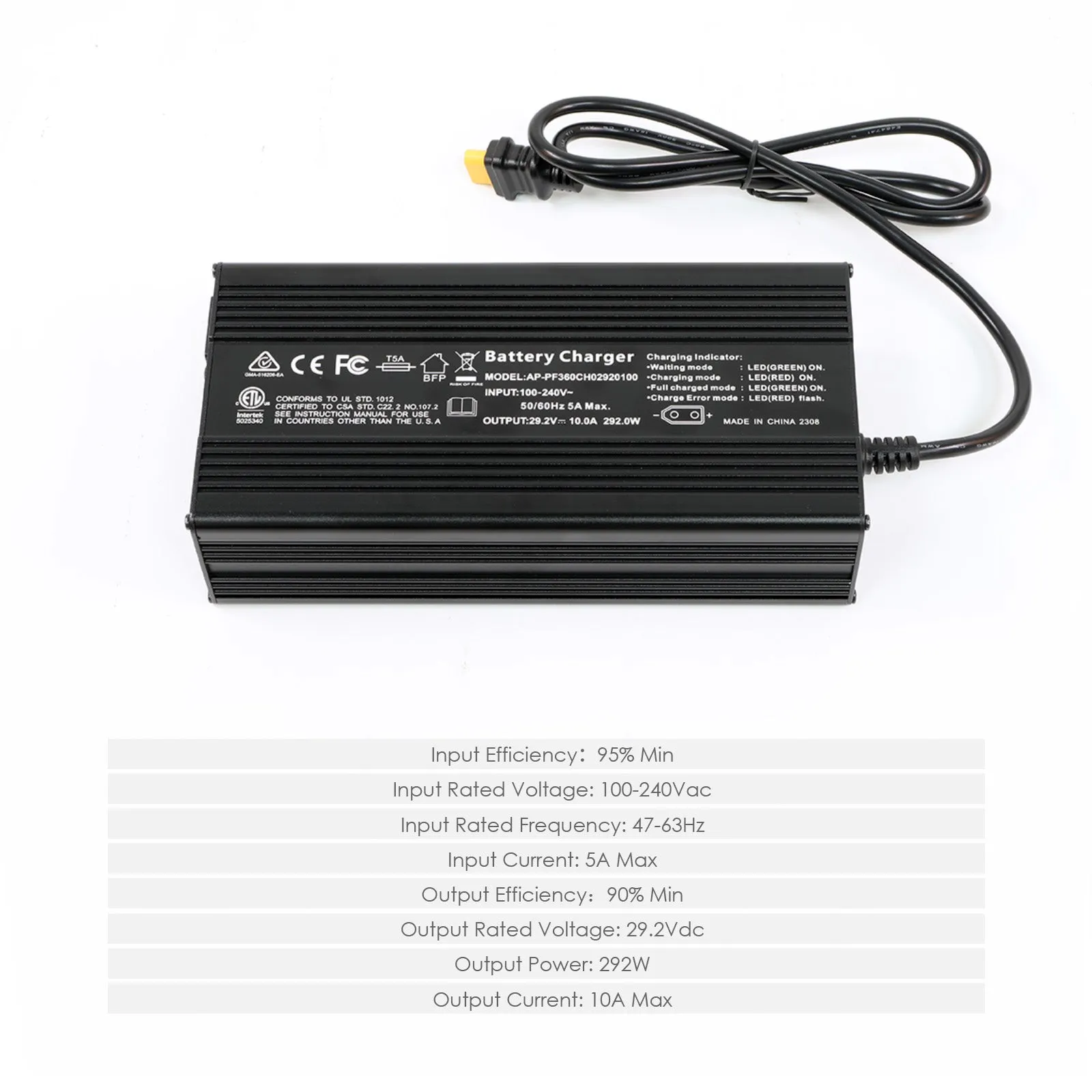

Technical Specifications
| Specification | Details |
|---|---|
| Output Power | 292W |
| Rated Input Voltage | 100~240Vac |
| Output Voltage | 29.2Vdc |
| Output Current | 10A |
| Stable Voltage Accuracy | ±0.2V |
| Operating Temperature | -10～ 45℃, Typical value 25℃ (Full load) |
| Storage Temperature | -40～70℃, Typical value 25℃ |
| Relative Humidity | 5%－95%, Non-condensing |
| Elevation | ≤2000 m (Normal operation) |
| Cooling Method | Natural Air |
| Input Voltage Range | 90~264 Vac |
| Input Inrush Current | ≤110 A (Vin=230Vac @ full load, 25℃) |
| Input Current Max | 5 A (Vin=100Vac @Full load) |
| AC Input Voltage Frequency | 47—63 Hz |
| Power Factor Correction | ≥0.95 (Input 100~240Vac @ Full load) |
| Output Efficiency | ≥90% (Input 230Vac @ Full load) |
| Ripple & Noise | ≤500 mVp-p |
| Reverse Polarity Protection | Yes |
| Output Short Circuit Protection | Yes |
| Output Overvoltage Protection | Yes |
| Output Overcurrent Protection | Yes |
| Charging Indication Status | Power on: Green LED Charging: Red LED Battery full: Green LED |
The ROCKSOLAR 29.2V/10A LiFePO4 Battery Charger offers an efficient output power of 292W, ideal for fast and reliable charging.
Yes, this charger operates effectively in a wide temperature range from -10 to 45℃, ensuring versatility for use in various environmental conditions.
Absolutely, the ROCKSOLAR Charger is designed to function in relative humidity levels of 5% to 95%, non-condensing, making it robust for use in diverse humidity conditions.
This charger is equipped with comprehensive safety features, including reverse polarity protection, output short circuit protection, overvoltage, and overcurrent protection, ensuring a safe and secure charging process.
The charger boasts high efficiency with a power factor correction of ≥0.95 and an output efficiency rate of ≥90%, ensuring energy-efficient operation.
Yes, designed for versatility, this charger can effectively function at altitudes up to 2000 meters, suitable for various high-altitude applications.
The charger includes intuitive LED indicators: green light for power on, red light during charging, and green light when the battery is fully charged, ensuring clear and easy understanding of the charging status.
