Product Details
＋

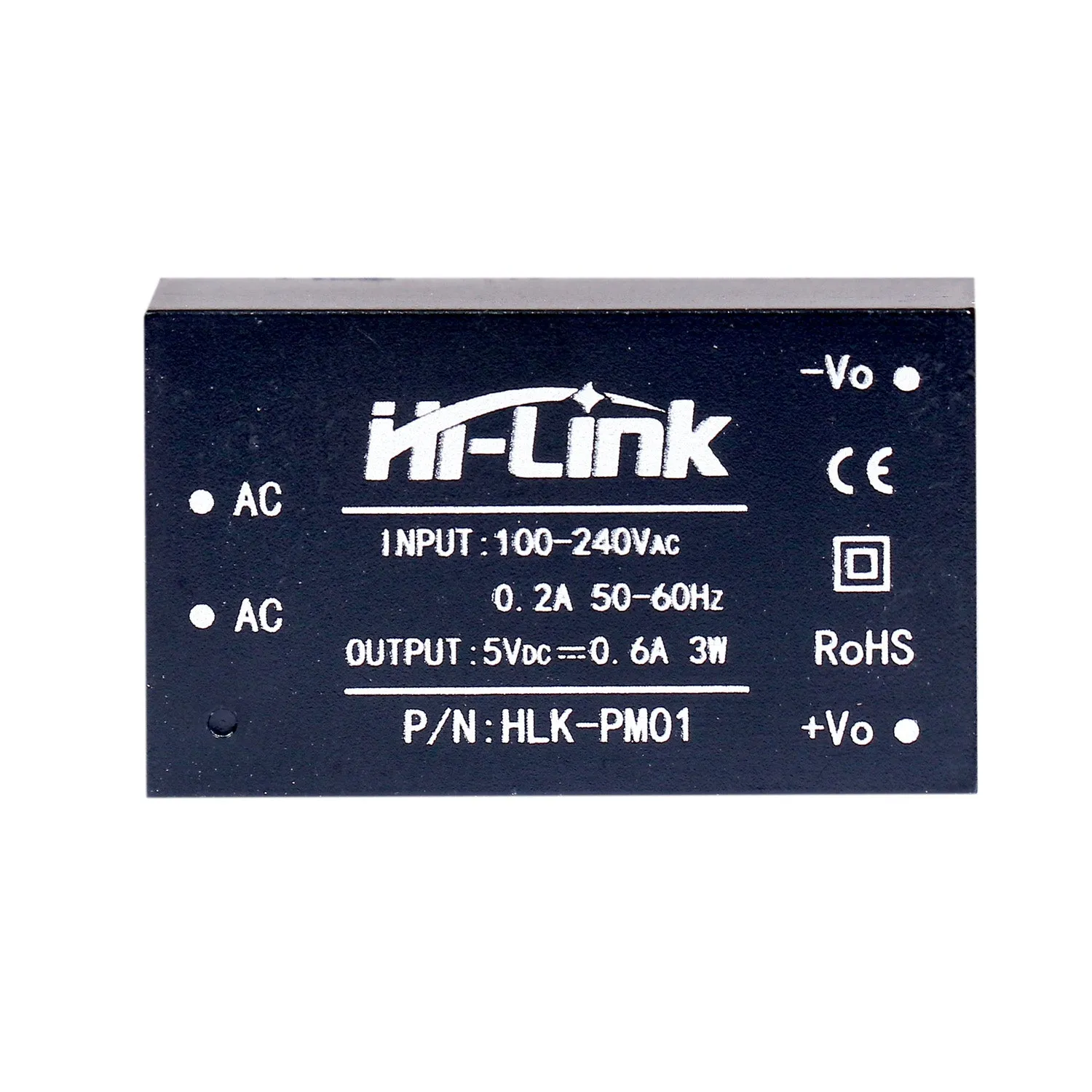

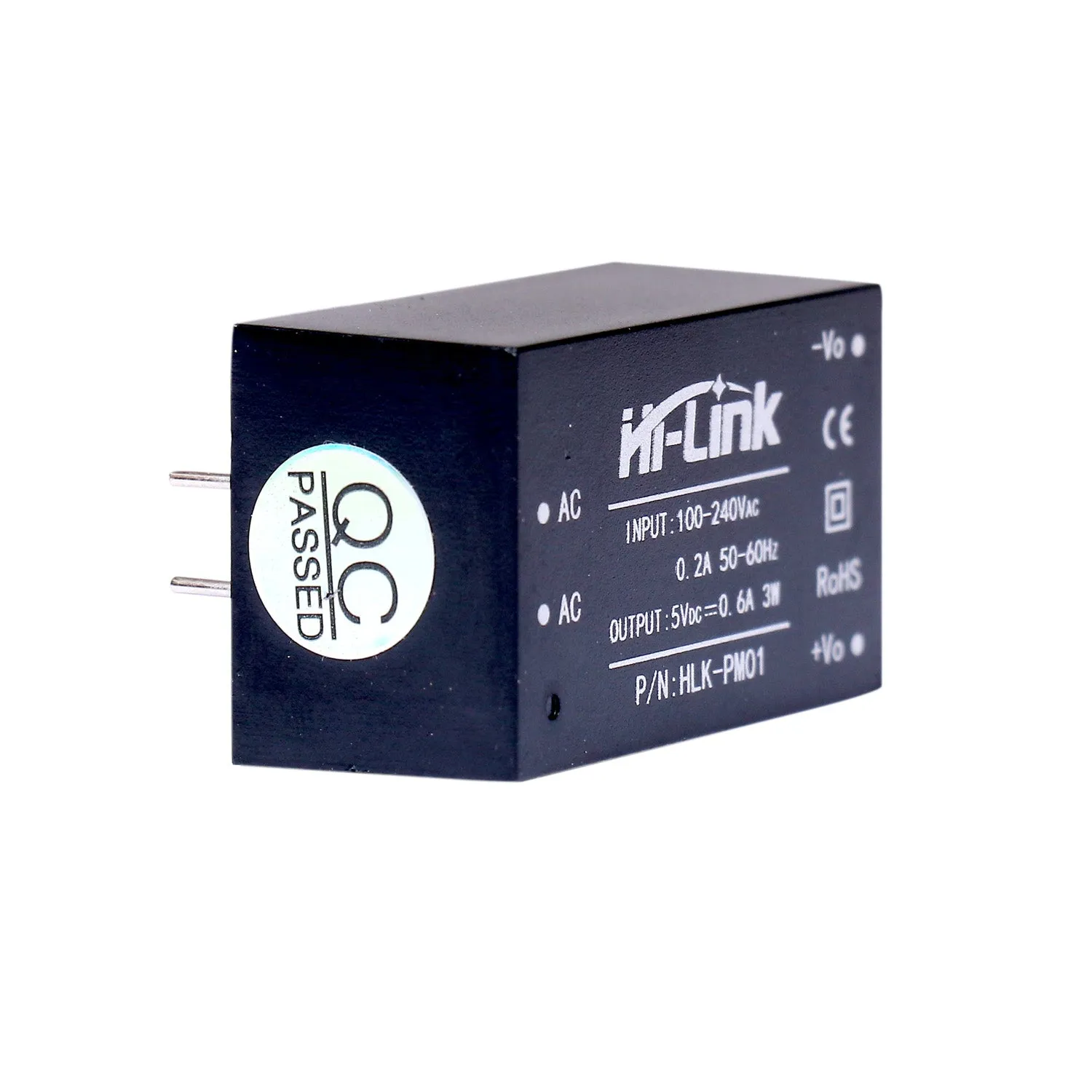

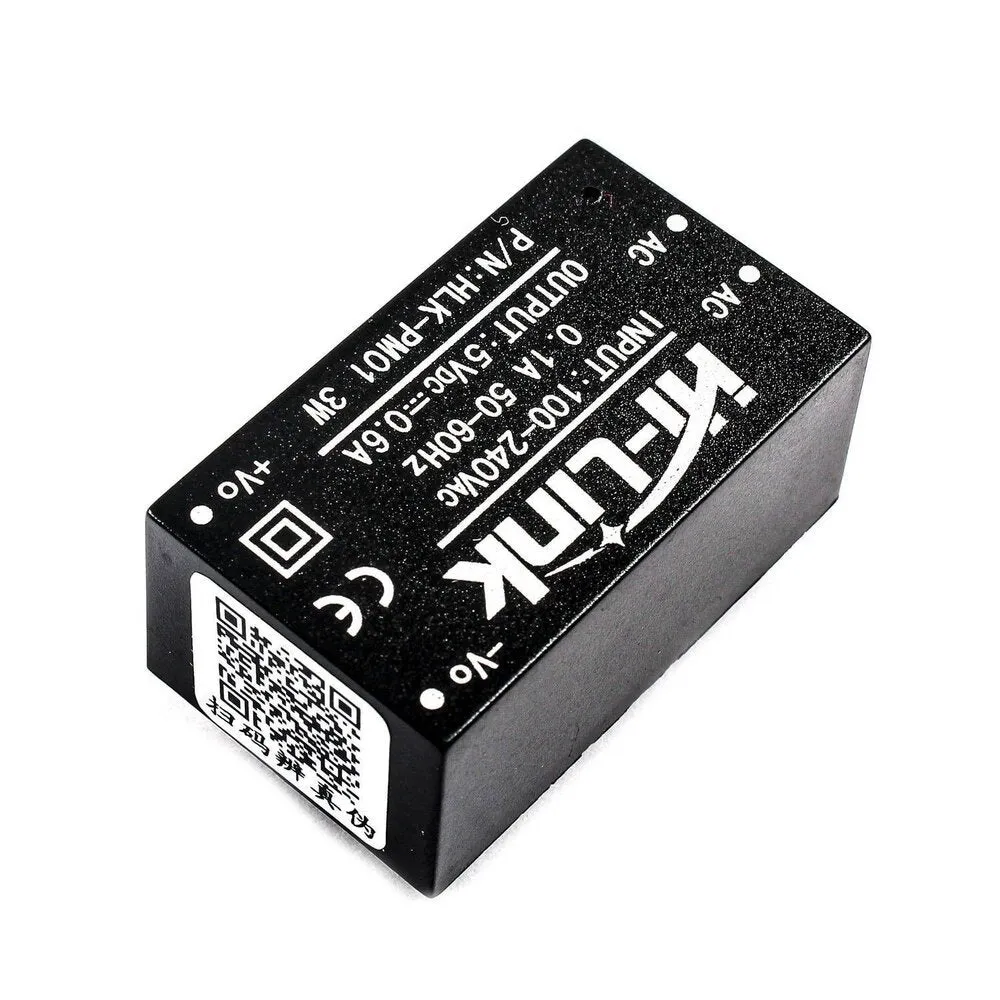

HLK-PM01 5V/3W Switch Power Supply Module:
HI LINK HLK PM01 5V/3W Switch Power Supply Module is plastic enclosed PCB-mounted isolated switching step-down power supply module. It can supply 5V DC from 120V AC – 230V AC and has a power rating of 3 watts. This makes it perfect for small projects that need a 5-volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.Application of HI LINK HLK PM01:
This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution for power pads that you take. It is widely used in smart homes, automation and control, communication equipment, instrumentation, and other industries.Features of HILINK 5V 3W
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 90 ~ 264V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss 0.1W
Environmental conditions
- Technical indicators: Single bit
- Working temperature: – 20-60 degree
- Storage temperature: 80-40 -degree
- Relative humidity: 5-95%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude: 2000M or less.
Technicals Details of HI LINK HLK PM01:
- AC Input Voltage Range: 90 ~ 264V
- Input Low Voltage Efficiency: Vin=110VAc, Output full-load: 69%
- Input High Voltage Efficiency: Vin=220VAc, output full-load: 70%
- Long-term reliability: MTBF 100000h
- Load-rated output voltage: 5±0.1
- Short-term maximum output current: 1000mA
- The maximum output current for a long time: 600mA
- Operating Temperature: -20 to 60°C
- Store Temperature: -40 to 80°C
- Relative humidity: 5 to 95%
- Rated input voltage: 100-240VAc
- Maximum input current: 0.2A
- Input current surge: 10A
- Color: Black
- Output DC Voltage: 5V
- Voltage Regulation: ±0.2 %
- Load Regulation: ±0.5 %
Physical Attributes of HILINK 5V 3W
- Size mm (LxWxH): 33 x 19 x 15
- Weight(gm): 16
Package Includes
- 1 x HI LINK HLK PM01 5V/3W Switch Power Supply Module
