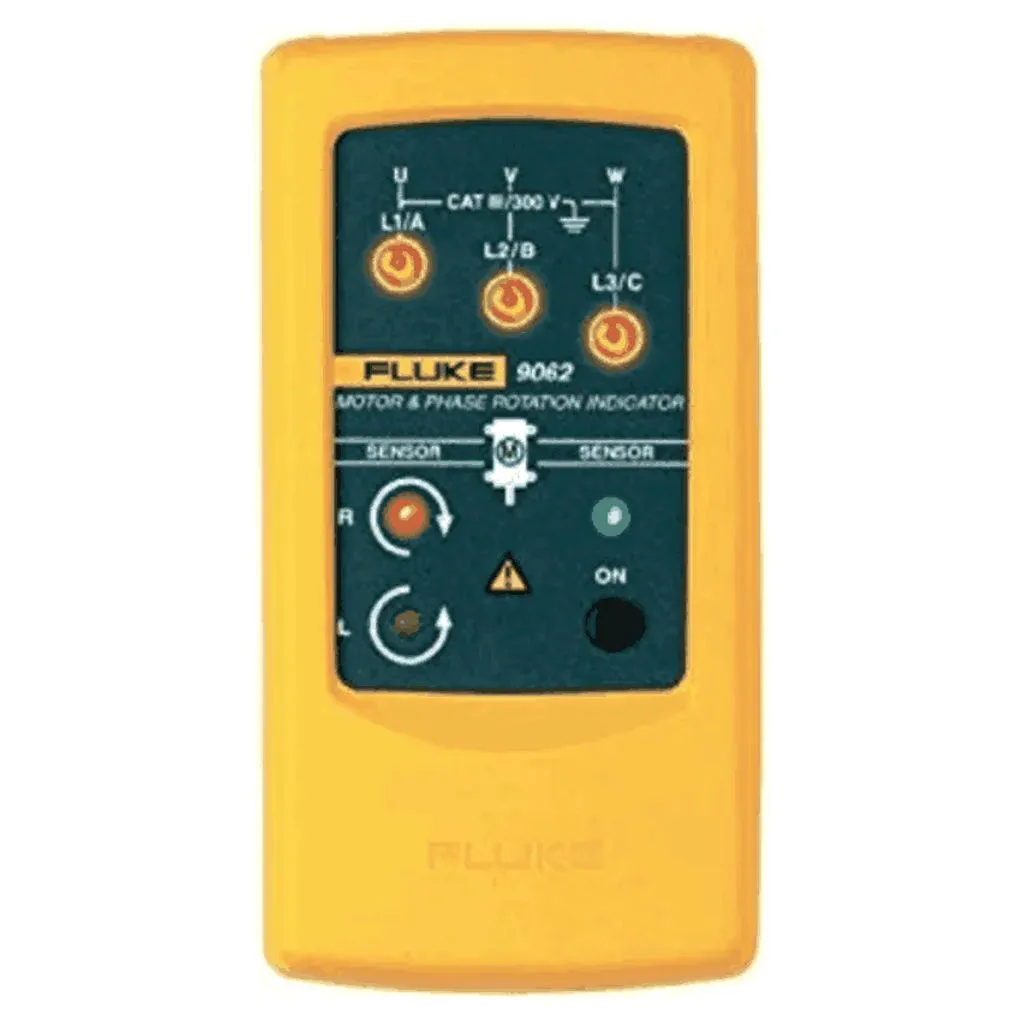

Name: Fluke Motor and Phase Rotation Indicator 120-400V AC 9062
SKU: 1241134

Product Details ＋

Product Description

The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection
Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors
The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets

Product Specification

Brand	Fluke
Product Type	Motor and Phase Rotation Indicator
Model	9062
Voltage Range	Up to 400 V
Phase Display	120-400 V AC
Frequency Range	2-400 Hz
Operating Timer	Continuous
Operating Temperature	0 °C to 40 °C
Operating Altitude	Up to 2000m
Humidity (without Condensation)	15% to 80%
Dust/Water Resistance	IP 40
Electrical Safety	EN 61010,EN 61557-7
Overvoltage Category	CAT III, 300 V
Size	124 x 61 x 27 mm
Weight	1 x 9 V
Batteries	1 x 9 V
Warranty	Brand Warranty
