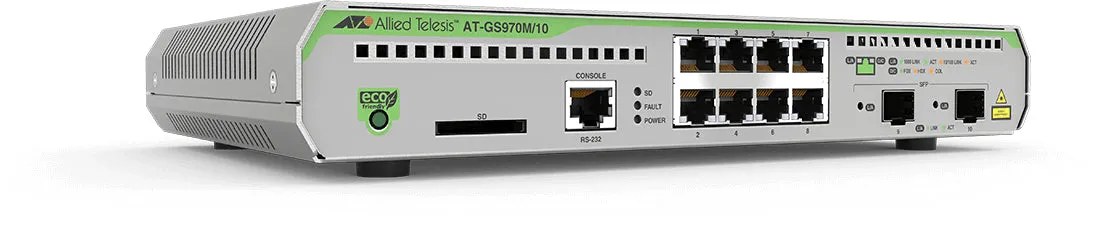

The Allied Telesis CentreCOM® GS970M/10 Layer 3 managed switch features eight 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge.

Management features
Multicast support	Yes
Traffic classification	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
MIB support	SNMP MIB
Switch layer	L3
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Compatible memory cards	SD, SDHC
Gigabit Ethernet (copper) ports quantity	8
Fiber optic connector	SFP
Console port	RS-232
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4094
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Ethernet Ring Protection Switching (ERPS)	Yes
Fast leave	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Virtual LAN features	Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Data transmission
Number of VLANs	4094
Jumbo frames	10000
Latency (10-100 Mbps)	7.8 µs
Latency (1 Gbps)	3.4 µs
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	20 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	14.9 Mpps
Optical fiber
Fiber optic connector	SFP
Fiber ethernet cabling technology	100BASE-X, 1000BASE-X
Performance
Packet buffer memory	1.5 MB
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	64 MB
Telnet	Yes
Technical details
Form factor	1U
Product colour	Grey
Rack mounting	Yes
Telnet	Yes
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication, Web-based authentication
SSH/SSL support	Yes
Security algorithms	3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Root protection	Yes
Password protection	Yes
Authentication type	AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
Neighbor discovery snooping	Yes
DHCP features	DHCP snooping, DHCP client
Multicast features
Multicast support	Yes
Protocols
Routing protocols	RIP, RIP-2
Certificates
Safety	EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1
Certification	FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A
Memory
Packet buffer memory	1.5 MB
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	64 MB
Design
Wall mountable	Yes
Country of origin	China
Safety	EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1
Form factor	1U
Product colour	Grey
LED indicators	Yes
Certification	FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A
Rack mounting	Yes
Indication
LED indicators	Yes
Power
Power consumption (max)	16 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2.4 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Heat dissipation	55 BTU/h
Weight & dimensions
Width	265 mm
Depth	180 mm
Height	42.5 mm
Weight	1.5 kg
Packaging data
Included power plug types	UK
Package width	430 mm
Package depth	360 mm
Package height	150 mm
Package weight	2.85 kg
Packaging content
Included power plug types	UK
Other features
Country of origin	China
